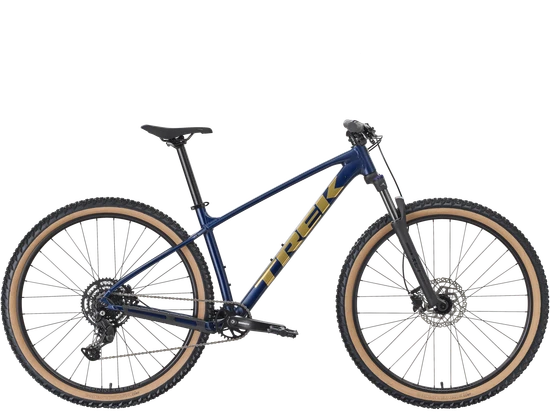

The Trek Marlin 5 is an all rounder hardtail that's perfectly suited for trails and everyday adventures. A front suspension fork with 100 mm of travel, 21 speeds and mounts for a rack and mudguards make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Specifications
-
Frameset
- Frame
- Alpha Silver Aluminium, internal derailleur, dropper post and brake routing, chainstay brake mount, rack and kickstand mount, G2 Geometry on 29ers
- Front Suspension
- SR Suntour XCE 28, coil spring, preload, G2 Geometry w/51 mm offset on 29ers, 100 mm travel (13.5: 80 mm travel)
-
Wheels
- Front hub
- Formula DC20 alloy
- Rear hub
- Formula DC31 alloy
- Rims
- Bontrager Connection 32-hole double-walled
- Tyres
- Bontrager XR2, 29x2.20˝ front, 29x2.0˝ rear (13.5 & 15.5: 27.5x2.20˝)
-
Drivetrain
- Shifters
- Shimano Altus M310, 7 speed
- Front derailleur
- Shimano Tourney TY300
- Rear derailleur
- Shimano Tourney TY300
- Crank
- Shimano Tourney TY301, 42/34/24
- Bottom bracket
- Sealed cartridge, 73 mm
- Cassette
- Shimano TZ500, 14-28, 7--speed
- Chain
- KMC Z51
- Pedals
- VP-536 nylon platform
-
Components
- Saddle
- Bontrager Arvada
- Seatpost
- Bontrager alloy, 2-bolt head, 31.6 mm, 12 mm offset
- Handlebar
- Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width (13.5: 690 mm width)
- Grips
- Bontrager XR Endurance Comp
- Stem
- Bontrager alloy, 31.8 mm, 7-degree, Blendr compatible
- Head set
- 1-1/8˝ threadless, semi-integrated, semi-cartridge bearings
- Brake set
- Tektro HD-275 hydraulic disc (13.5 & 15.5: Tektro HD-276 short reach lever)
